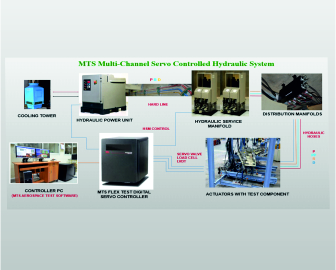

MTS multi-channel servo-controlled hydraulic system is used for testing full-scale airframes. The fatigue-rated test facility features a 16-channel digital FT200 test controller with MTS Aerospace test software, capable of running at least four independent tests simultaneously.
Hydraulic system comprising of Hydraulic Power Units (HPU) operates at a pressure of 210 bar with a flow rate of 100 L/min, Hydraulic Service Manifolds (HSM)/ Hydraulic Distribution Manifolds (HDM),ten linear hydraulic actuators complete with dual bridge load cells and integral displacement devices Dynamic load actuators for various capacities and a stroke of ±150 mm.A servo valve drives the actuator, allowing for a stroke of ±10 mm at a frequency of 1 Hz Moog test facility features a 16-channel digital test controller with Moog Aerospace test software, capable of running at least two independent tests simultaneously.
Hydraulic system comprising two-station Hydraulic Service Manifolds (HSM), two Hydraulic Distribution Manifolds (HDM), eight linear dynamic load actuators for various capacities and a stroke of ±150 mm. Hydraulic actuators complete with dual bridge load cells and integral displacement devices
This system is used to demonstrate the structural integrity of various composite airworthy structures used in civil and military aircraft applications, as well as other research and development (R&D) applications, through static and fatigue testing.
The system supports the execution of a wide range of static tests to validate the structural design of aircraft components, including limit load tests, ultimate load tests, and fracture tests.
It is equipped with specialized software for test setup, control, and data analysis, streamlining the entire testing process. This software enables efficient test configuration, optimization of control parameters, and comprehensive evaluation of test results.
The system is capable of conducting full-scale fatigue testing of airworthy structures and performing damage tolerance studies on composite materials, supporting both certification and advanced research requirements.
