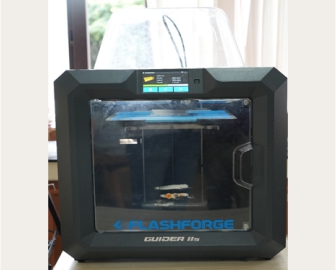

Flashforge Guider IIs manufacture parts through layer by layer addition of material as per digital model from CAD. Raw material in the form of filaments, is added layer by layer as per the shape of the component with minimal wastage and without tooling.
Rapid prototypes for Jigs, Tooling and functional prototypes
Development of thermoplastic parts without tooling
Print Technology: FFF (Fused Filament Fabrication)
Build Volume: 280 x 250 x 300 mm (11 x 9.85 x 11.8 in)
Positioning Precision: XY: 11 microns, Z: 2.5 microns
Layer Thickness: 0.1-0.5mm
Nozzle Diameter: 0.4mm (0.015in)
Filament Diameter: 1.75mm (0.069in)
Layer Resolution: ±0.20mm
Max. Extruder Temperature: 240°C (464°F)
Heated Build Plate Temp.: up to 120°C (248°F)
Material Compatibility: PLA, ABS, PLA
Other Material Compatibility: PLA, ABS, PLA pro, ABS Pro, Elastic, PVA, HIPS, PETG, TPE, TPU, Conductive Filament, Flexible Filament, Metal Filled Filament, Wood Filled Filament, and PP
